Cropping/ Bricking/ Squaring/ Slicing/ Wafering Fluids

AKLC400 Series | L300 D5CMOS_B Slicing and Cutting Hard Materials
AKLC400 and D5CMOS_B are perfect for slicing and cutting hard materials - Sapphire, GaN, SiC, Quartz glass and Electronic Package Singulation. AKLC400 and D5CMOS_B are revolutionary materials that offers excellent heat transfer, extends diamond wire and Blade life, improves wafer-die reliability and is extremely environmentally friendly.

Products

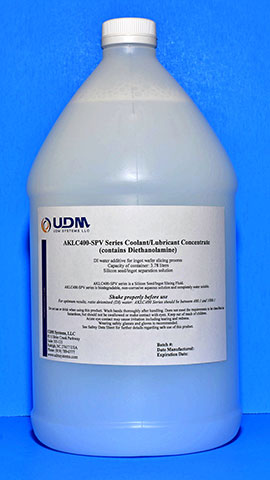

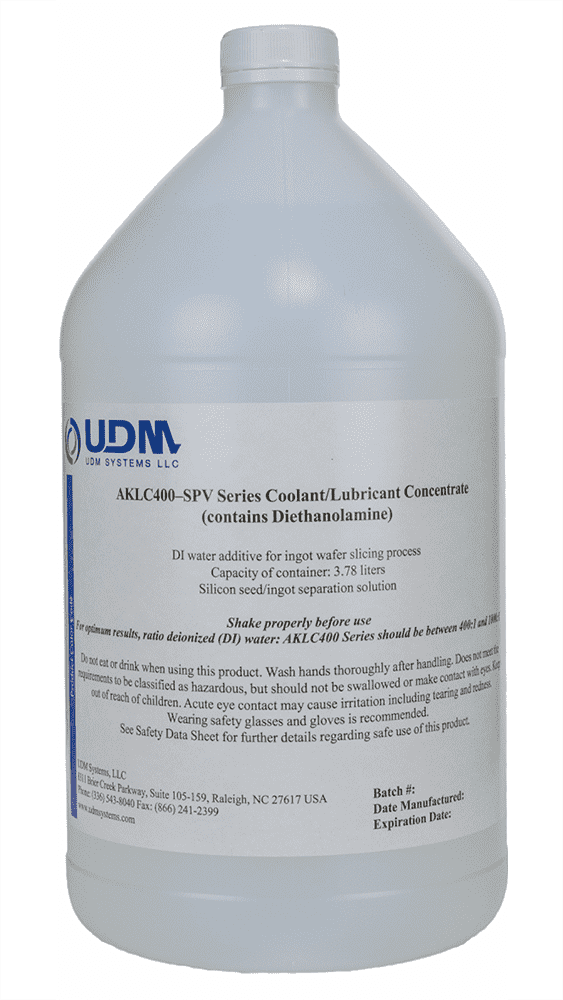

UDM AKLC400-SPV Coolant/Lubricant

For Silicon Ingot and Sapphire Wafering/Bricking/Squaring/Cropping
UDM AKLC400-SPV Coolant/Lubricant
Application: Diamond Wire Sawing Process
  • AKLC400 Coolant- lubricant is a biodegradable water based, non-caustic material.
  • Dilution ratio of DI /RO water:
    • Ingot Slicing: 1:800 - 1:1200
    • Glass Wafer Dicing: 1:1000 - 1:4000
  • Effectively reduces the surface tension of cutting/slicing water solution to about 22.0 to 25.0 mN/m.
  • Increases heat transfer (heat dissipation) therefore reducing thermal stress.
  • Outstanding wetting and rinsing properties.
Environmental Benefits and Cost
  • Biodegradable, non-hazardous and hence easily disposable.
  • Biochemical Oxygen Demand (BOD) < 12.0 mg/L (BOD less than 12.0 mg/L).
  • Chemical Oxygen Demand (COD) < 96.0 mg/L (COD less than 96.0 mg/L).
  • Elimination of slurry management.
  • No PEG & SiC hazardous waste management.

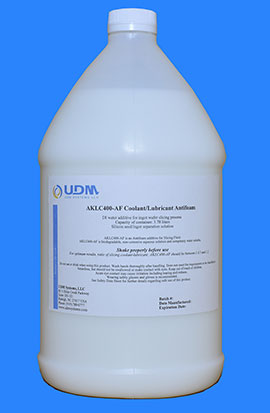

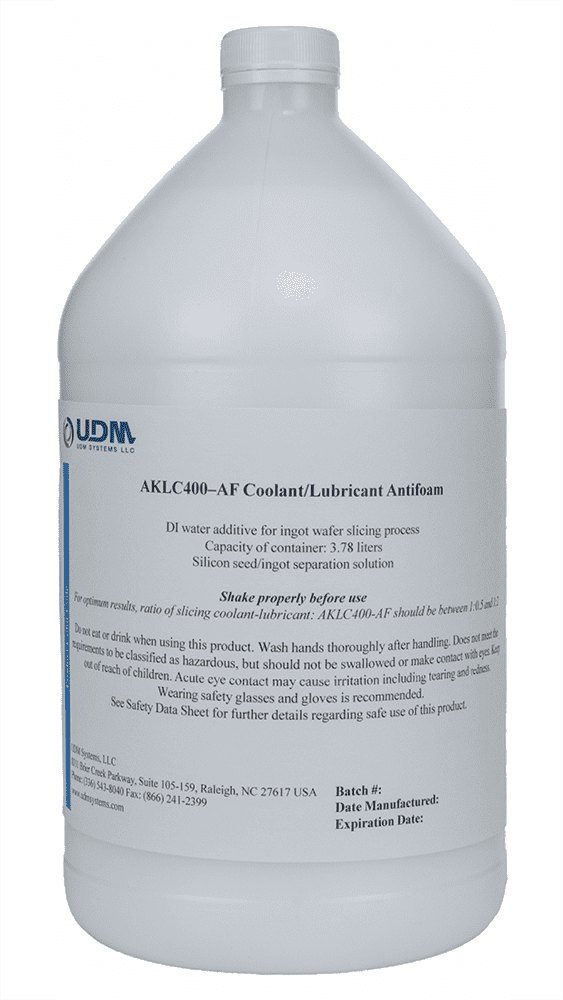

UDM AKLC400-AF Coolant/Lubricant Antifoam

For reducing foaming in AKLC400-SPV fluid concentrate
UDM AKLC400-AF Coolant/Lubricant Antifoam
Application: Diamond Wire Sawing Process
  • AKLC400-AF (Antifoam agent) is used in combination with AKLC400-SPV for slicing/wafering silicon ingots. The material is biodegradable, non-corrosive, and completely water soluble.
Environmental Benefits and Cost
  • Biodegradable, non-hazardous and easily disposable.
  • Biochemical Oxygen Demand (BOD) < 12.0 mg/L (BOD less than 12.0 mg/L).
  • Chemical Oxygen Demand (COD) < 96.0 mg/L (COD less than 96.0 mg/L).
